Architecture¶

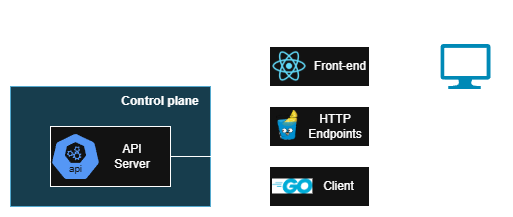

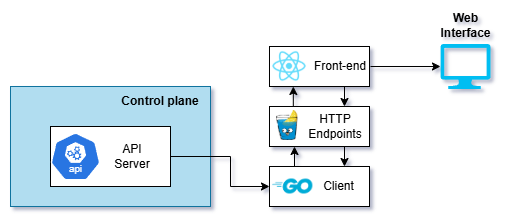

This diagram illustrates the architecture of KubeScope and its components:

Connects to API Server¶

The back-end uses a client that communicates directly with the Kubernetes API Server using a service account with RBAC permissions.

No additional agents are required on worker nodes, except for kubelet itself.

Collect cluster data¶

The client queries the Kubernetes API and retrieves data such as:

• Nodes

• Pods

• Workload (Deployments, ReplicaSets, DaemonSets)

• Network Services

• Events

The back-end then exposed these data using a RESTful API layer for Front-end to fetch.

Visualization¶

The front-end fetches data from back-end and visualize them in a clean, organized Web UI.
